The Rise of 16-Fiber Ribbon & Dedicated Ribbon Fiber Splicers

2026-02-10

16-core ribbon fiber optic cable is extensively used for high-density, high-speed networking, including 5G base station backbones, data center interconnects, and Fiber to the Home (FTTH) aggregation layers. Its flat, 16-fiber structure enables faster mass fusion splicing (reducing splice cycles by 25% over 12-fiber) and, when used with rollable ribbon (RR) technology, fits more fibers into smaller,, crowded conduits.

Key Applications of 16-Core Ribbon Fiber:

5G Network Backbone: Used to connect base stations and core equipment rooms, providing high capacity and efficiency.
Hyperscale Data Centers: Facilitates rapid installation and higher fiber density in, connecting MTP/MPO modules, and supporting high-speed data transmission.
FTTH Aggregation Layers: Serves as the main artery for connecting optical distribution points to high-density residential areas.
Metro Area Networks: Ideal for backbone sections of metropolitan networks, allowing for quick deployment and, in some cases, easier restoration.
High-Fiber Count Cables: Utilized in advanced cable designs like the 6912-fiber cable, which uses 16-fiber rollable ribbons to maximize space and, in some, allow for better, more flexible routing.
Benefits:
Faster Installation: 16-fiber mass fusion splicing cuts down, by up to 25%, the total time spent splicing compared to 12-fiber ribbons.
High Density: Allows maximum fiber packing in limited space, such as conduit or tray, particularly with 200 µm Fiber technology.
Future-Proofing: Offers the necessary, high fiber capacity for, and supports, future, anticipated, bandwidth growth.

Choosing the Right 16-Fiber Ribbon Splicer
When evaluating these precision machines, consider:

Core vs. Cladding Alignment: For long-haul or critical networks, PAS/FAST Core Alignment technology is vital for the lowest possible loss across every fiber. For shorter-distance, high-density applications, precision cladding alignment may suffice.

Versatility: Many modern ribbon splicers can also handle single fibers and smaller ribbon counts (4, 8, 12), offering excellent flexibility.

Ergonomics & Software: Look for intuitive interfaces, robust data management, and rugged designs built for field use. Features like Ribbon-ID recognition automate fiber mapping for faster restoration.

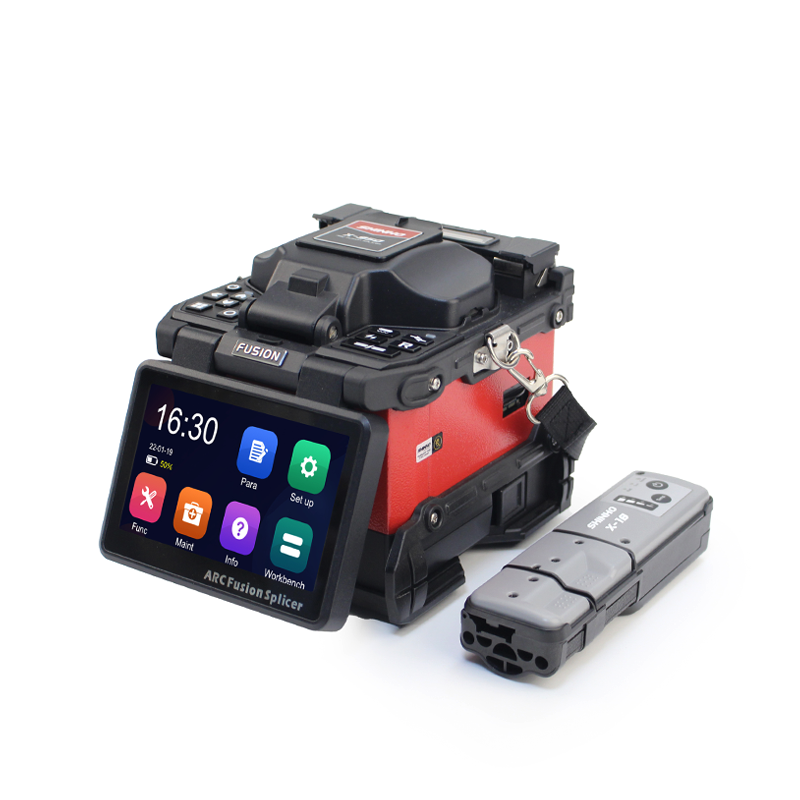

Here recommend an economic and high precision ribbon fiber fusion splicer Shinho X-950,applicable to 2.4,6,8 10,12,16 cores ribbon fiber.See more details,please visit the product link through: http://Hand-Held Ribbon Fiber Fusion Splicer,Ribbon Fiber Splicing Machine Manufacturers https://www.xhfiber.com/ribbon-fiber-fusion-splicer-x950_p25.html
