How does a fiber fusion splicer used in fiber laser source repair

2025-07-24

Fiber fusion splicers are critical tools for repairing fiber laser sources, enabling precise rejoining of broken fibers or integration of new components with minimal signal loss. Here's how they are applied in fiber laser repair, based on specialized techniques and equipment:

1. Precision Cleaving and Preparation

Fiber End Preparation: Before splicing, damaged fiber ends are stripped of coatings using tools like the CFS-02 stripper and cleaved with precision cleavers (e.g., SHINHO LDC-100) to ensure flat, perpendicular ends.

Contamination Control: Connector cleaners and fiber wipes remove dust, which is vital for low-loss splices in sensitive laser cavities.

2. Specialty Fiber Splicing Techniques

Active Alignment for Double-Clad Fibers: High-power lasers use double-clad fibers where core/clad alignment is critical. Active alignment monitors transmitted light during splicing, achieving losses as low as 0.05 dB by optimizing core positioning.

Thermal Core Expansion (TEC): For mode-field mismatches (e.g., splicing 10/130 µm LMA fibers to 6/125 µm SMF), fibers are heated in the splicer to expand the core diameter, reducing losses to ≤0.1 dB and improving coupling efficiency to 91% .

Tipped Fiber Techniques: For erbium-doped fibers (EDFs), lens-like tipped fibers reduce interfacial loss by 0.46 dB versus conventional methods, boosting quantum efficiency in laser gain media.

3. Loss Mitigation Strategies

Dopant Diffusion: Controlled heating diffuses core dopants at SMF/EDF junctions, reducing splice loss by 1.8 dB and minimizing gain impairment in amplifiers.

Arc Power/Time Optimization: Adjusting fusion parameters (e.g., arc duration) prevents under/over-fusing, crucial for preserving rare-earth dopant properties in gain fibers.

4. Post-Splice Validation and Fault Localization

Visual Fault Locators (X-4007E): Detect micro-bends, breaks, or poor splices by injecting visible light, identifying faults needing rework .

Tension Testing: Validates splice strength (≥50N for mechanical splices) to ensure reliability in high-vibration laser environments.

5. Splicer Maintenance for Consistent Performance

Calibration: Regular alignment checks ensure core-to-core accuracy during active alignment processes.

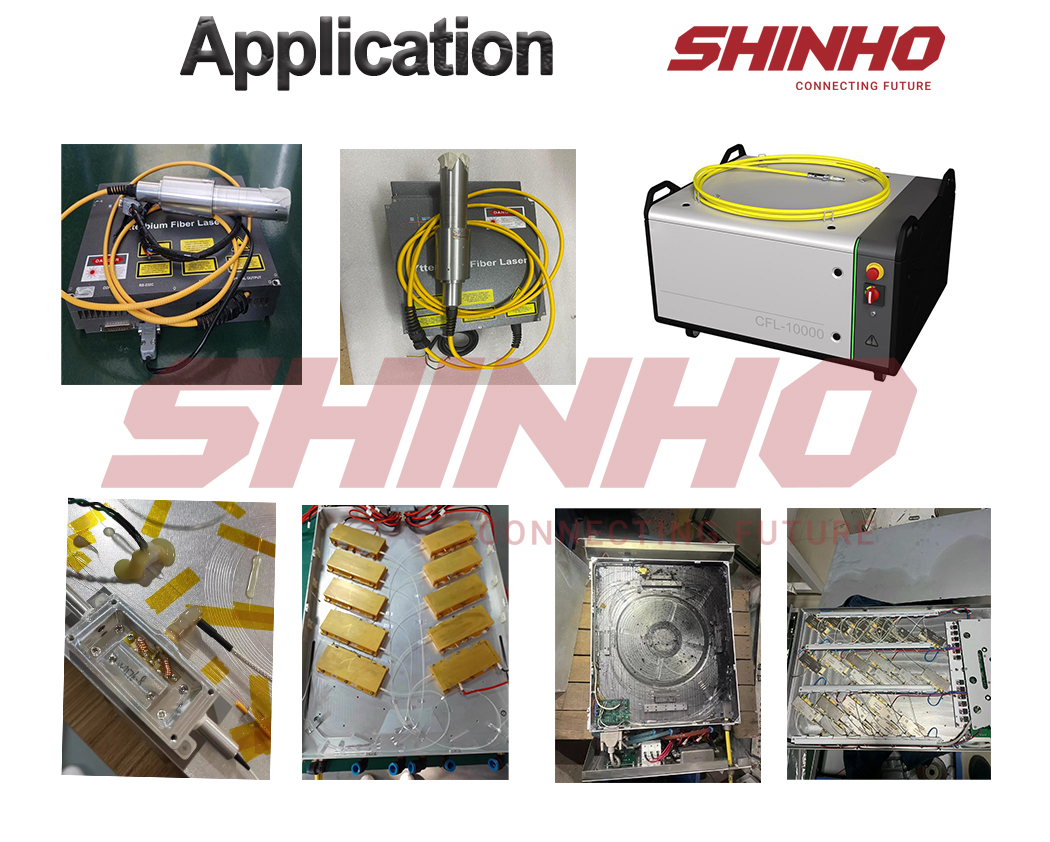

6.Key Applications in Fiber Laser Repair

Gain Fiber Integration: Low-loss splicing of EDF/Yb-doped fibers into cavities to restore lasing efficiency.

Component Replacement: Fusion-splicing new pump combiners, isolators, or output couplers while maintaining mode-field matching .

Fault Recovery: Mending broken cladding-pumped fibers or signal delivery fibers with mechanical splices (150-sec repairs) for rapid restoration.

By combining precision splicing, loss-reduction methods, and rigorous validation, fusion splicer like SHINHO S-37 enables reliable restoration of optical path integrity in fiber lasers, directly impacting beam quality and output power stability. For advanced repairs (e.g., quantum efficiency recovery in EDFLs), techniques like TEC or tipped splicing are indispensable .
